Autonomous Solar Inspection UGV

AregAI Robotics

RAPTOR

Dual-Domain Solar Inspection UGV

Engineered in USA

Ground + Aerial Inspection
Integrated AIRBOT Deployment Platform
AI Anomaly Detection
4–6 HRS Operating Time

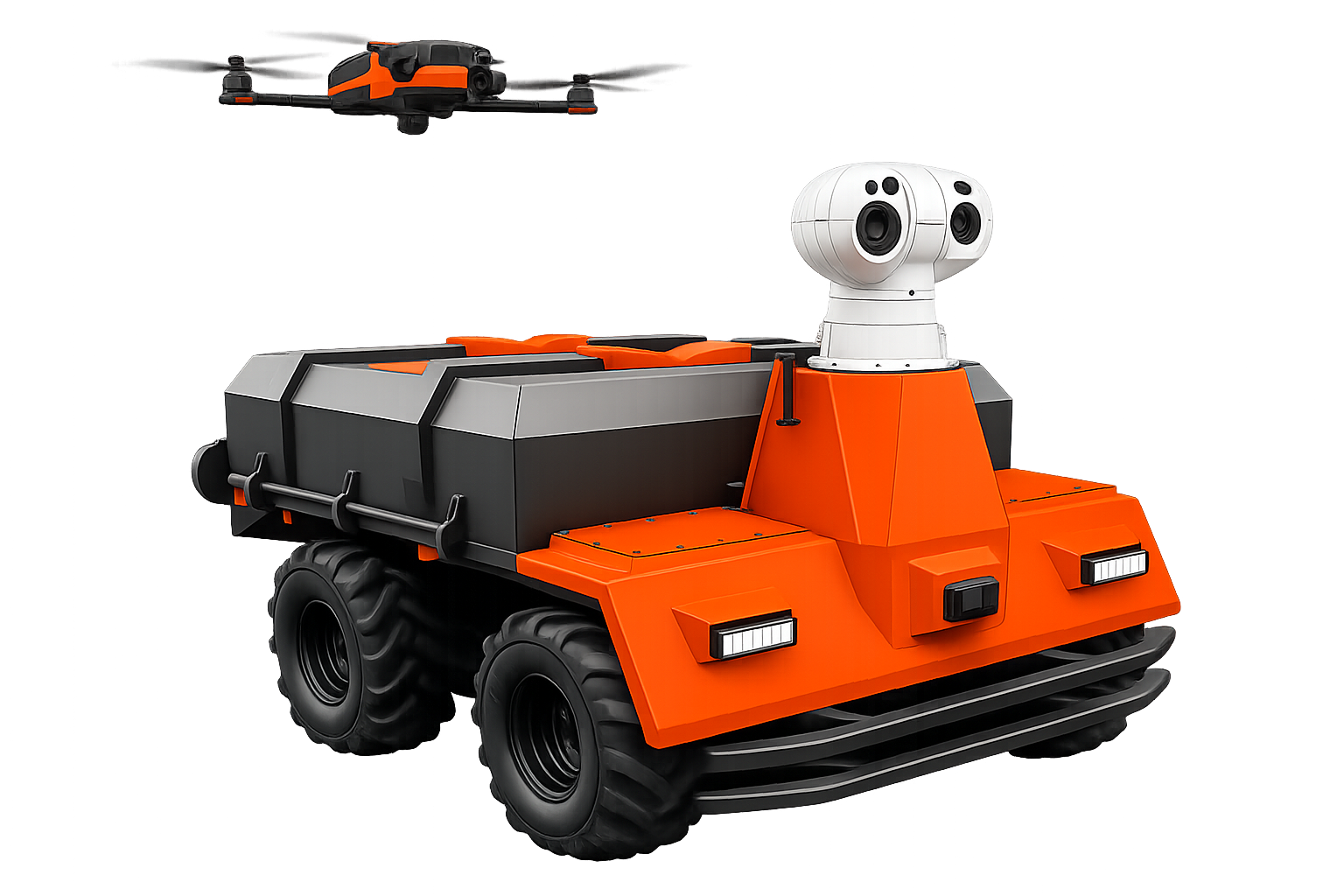

RAPTOR dual-domain solar inspection UGV — all-terrain wheeled platform with sensor turret and AIRBOT drone in flight above
Key Capabilities

Everything your solar plant needs. Autonomous.

Dual-Domain Inspection

Ground-level and aerial inspection in one platform — simultaneous thermal, visual, and structural coverage.

Integrated AIRBOT Deployment

Retractable platform launches and recovers AIRBOT on demand — fully autonomous, no manual handling.

Solar Panel Inspection

Hotspot, wiring, combiner box, inverter, structural, and microcrack EL detection from ground and air.

AI Anomaly Detection

FPGA/Jetson on-device AI — online and offline, real-time anomaly identification.

Thermal + Visual Imaging

640 × 512 LWIR thermal and 1980 × 1040 RGB with 8–120 mm zoom on ground sensor head.

Autonomous Navigation

GNSS + LiDAR + vision fusion — all-terrain, 24/7, scheduled or on-demand.

ERP & Digital Twin Integration

Mission planning, automated reporting, and real-time positioning via the areg.ai platform.

Security Surveillance

Perimeter patrol and site monitoring from ground and aerial perspectives simultaneously.

OPERATIONAL MODES

Autonomous Inspection
ERP dispatches a mission. RAPTOR navigates to the inspection zone, performs ground-level scanning, and deploys AIRBOT for aerial coverage — both relay anomaly data to the digital twin in real time.
On-Demand Mission
Operator triggers immediate inspection via ERP or remote control. RAPTOR executes ground and aerial inspection in sequence or simultaneously based on mission configuration.
Surveillance Patrol
RAPTOR follows a defined ground patrol route while deploying AIRBOT for simultaneous aerial surveillance — full site coverage from a single dispatched unit.
Operational Highlights
Dual-Domain Coverage
Ground sensors cover combiner boxes, wiring, and structural elements while AIRBOT simultaneously maps the full panel field from above — complete site coverage in a single mission.
Integrated Aerial Deployment
AIRBOT is housed in a retractable platform on RAPTOR. Covers open on command; AIRBOT launches and recovers autonomously — no manual handling or fixed launch infrastructure required.
End-to-End Reporting
Every mission generates a unified report combining ground and aerial findings — geo-tagged, severity-rated, and assigned for resolution directly through the ERP maintenance workflow.

Inspection Workflow

A fully autonomous inspection workflow from planning to actionable reporting.

01
Plan

Mission planned via ERP; RAPTOR and AIRBOT confirmed ready

02
Deploy

RAPTOR navigates to the zone; the AIRBOT platform opens and the drone launches

03
Inspect

Simultaneous ground thermal/visual scan and aerial survey at configured altitude

04
Detect

AI detection on both platforms; results geo-tagged and relayed to the digital twin

05
Report

Unified ERP report; AIRBOT recovers to RAPTOR; RAPTOR returns to dock

Dual-Domain Inspection. One autonomous system.

The most advanced solar plant inspection platform in the AregAI fleet. RAPTOR combines full ground-level inspection with on-demand aerial deployment — two inspection domains, one autonomous system, one ERP command loop.

Ground sensor head and integrated AIRBOT deliver simultaneous thermal, visual, and structural coverage.
FPGA/Jetson on-device AI detects anomalies in real time — online and offline, geo-tagged to the digital twin.
One RAPTOR replaces separate ground and drone deployments — less fleet, less coordination, lower cost.
Ground + Aerial
AI Anomaly Detection
AIRBOT Deployment

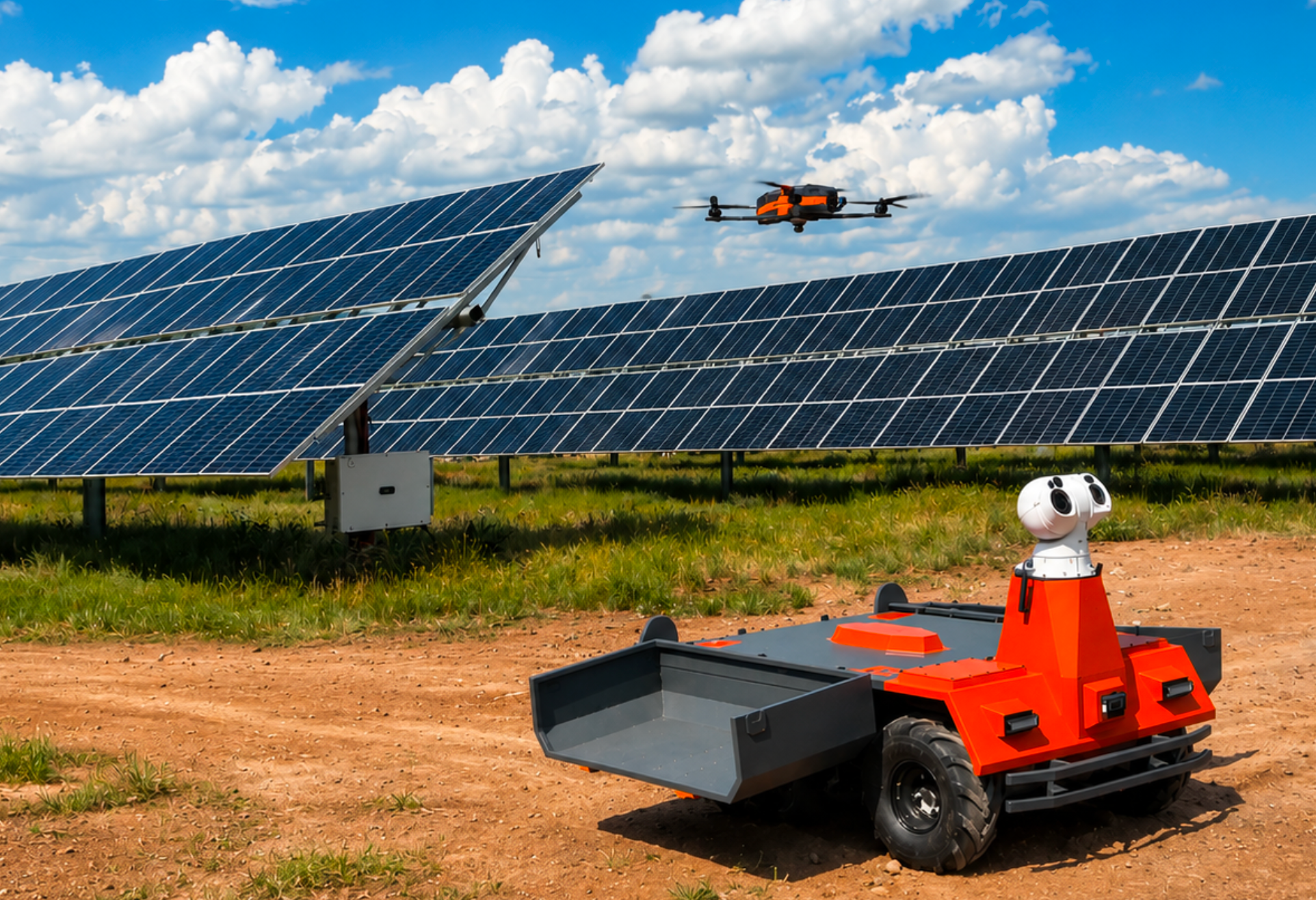

RAPTOR dual-domain solar inspection in the field — UGV with sensor turret on a solar farm access road and AIRBOT drone surveying the panel array above

The future of solar operations. Autonomous.

RAPTOR delivers dual-domain inspection with ground and aerial coverage, AI anomaly detection, and ERP-integrated reporting—24/7, in all conditions.

Learn more at areg.ai

TARGET APPLICATIONS

Utility-Scale Solar Power Plants
Full-site inspection from a single unit — ground structural and electrical checks combined with aerial thermal mapping through one ERP mission.
High-Value Solar Assets
Where inspection completeness is critical — RAPTOR delivers the most comprehensive anomaly coverage in the AregAI fleet from a single deployment.
Reduced Fleet Operations
One RAPTOR replaces separate ground and drone inspection deployments — reducing fleet size, coordination overhead, and operational cost.
Preventive Maintenance Programs
Dual-domain inspection integrated into ERP maintenance workflows — every anomaly is logged, tracked, and assigned for resolution automatically.

RAPTOR vs Separate Deployments

Capability RAPTOR Ground UGV Only Drone Only
Inspection DomainGround + aerialGround onlyAerial only
Units per MissionOneOne (partial coverage)One (partial coverage)
Aerial DeploymentIntegrated AIRBOTNoneSeparate launch crew
Structural InspectionYesYesLimited
AI Anomaly DetectionOn-device, both domainsGround onlyAerial only
ReportingUnified ERP reportSeparate logsSeparate logs
Fleet & CoordinationSingle unitMultiple deploymentsMultiple deployments

Integrated Operations Platform

All operations. One autonomous system.

All AregAI robots operate within a single unified command loop.

ERP Mission Planning
→
Autonomous Execution
→
Digital Twin Reporting
One system. Full-fleet visibility. Automated from dispatch to report.
Full Technical Datasheet

Get every spec.
Evaluate RAPTOR for your site.

Complete platform specifications, dual-domain inspection capabilities, AIRBOT deployment details, and ERP integration — everything your engineering team needs to evaluate RAPTOR.

Request Full Datasheet

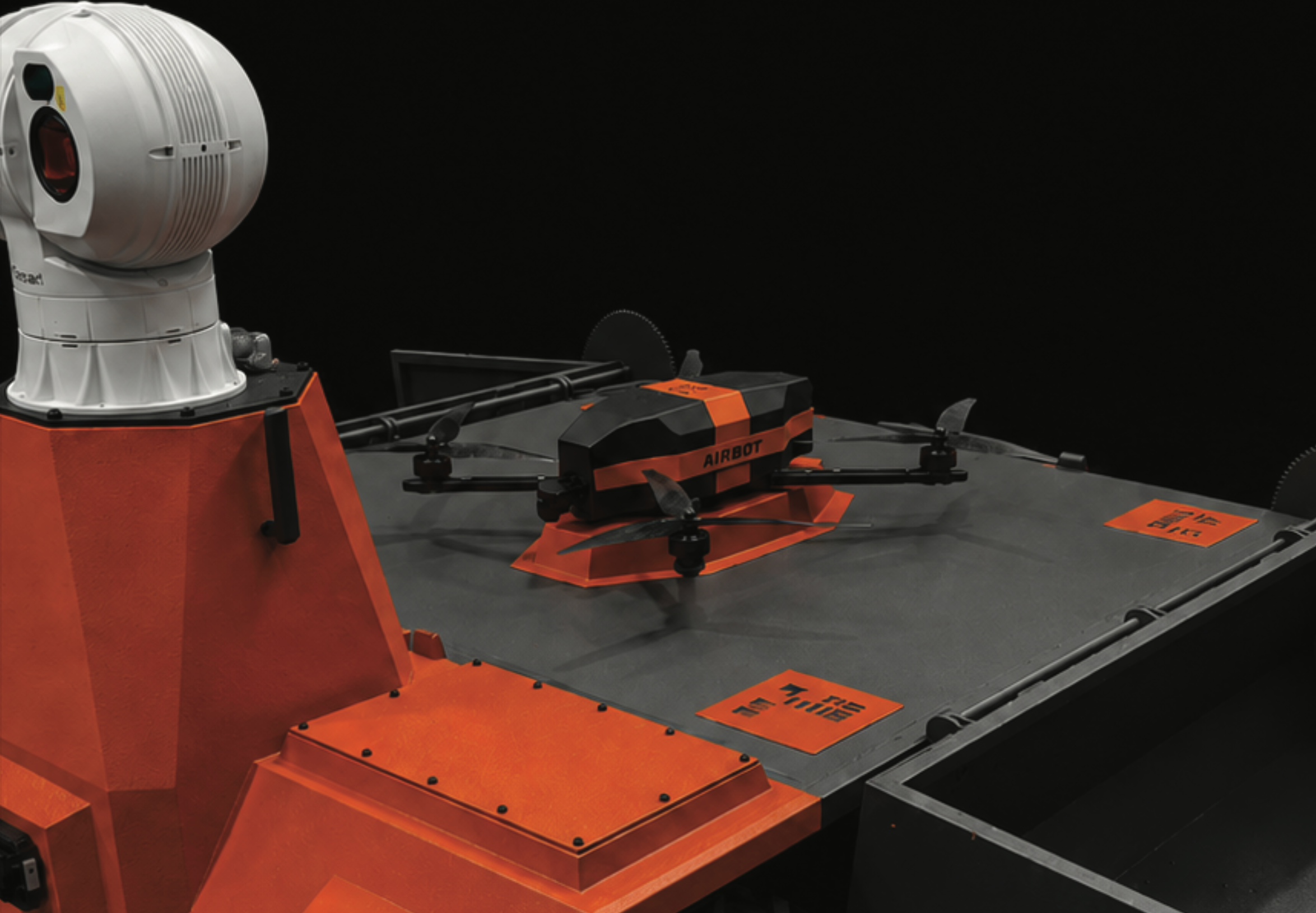

RAPTOR sensor turret and the integrated AIRBOT drone docked on the platform — close detail
